Expert Tips

The Tips section shown below addresses many of the common problems associated with CNC routing operations. Take some time to review them and you may eliminate future headaches and delays.

Climb Cutting vs. Conventional Cutting – Which is Right for Your Project?

Choosing between climb cutting and conventional cutting is essential for achieving the required finishes and clean edges. Understanding the difference helps you optimize performance and reduce wear on your CNC router bits. Our easy-to-follow guide, complete with visuals, ensures you're always cutting in the right direction for your material and project.


Steps to Determine the Best Cutting Method:

  • Select the appropriate router bit for your material
  • Set the correct RPM and feed rate (IPM)
  • Make a short test cut in your workpiece
  • Inspect the walls of the cut for surface quality

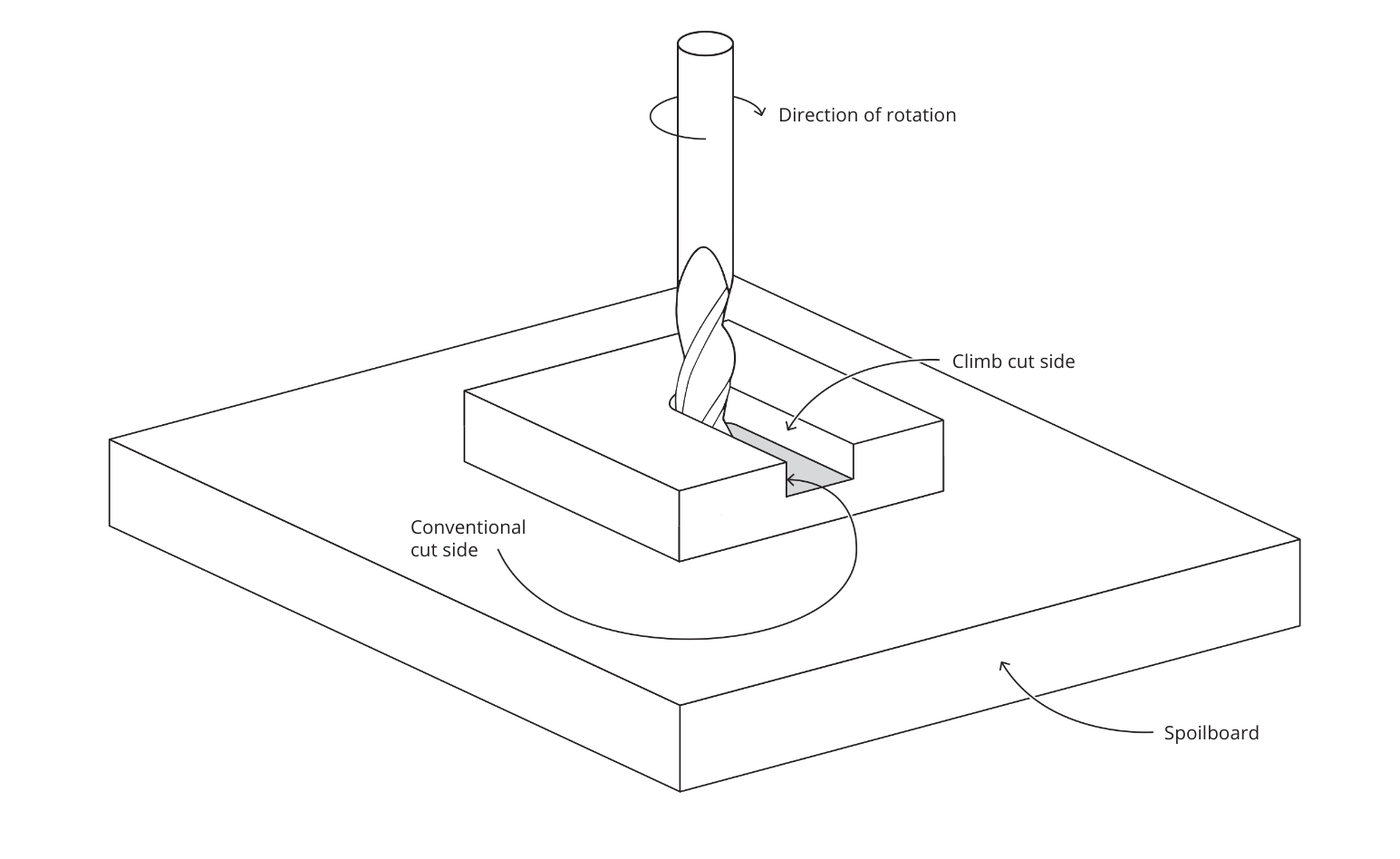

  • The left side of the cut represents conventional cutting
  • The right side of the cut represents climb cutting
  • Choose the cutting direction that produces the best finish for your application


By following these steps, you can ensure precise, high-quality cuts while maximizing tool efficiency.

Pro Tips for Optimizing Your CNC Cutting

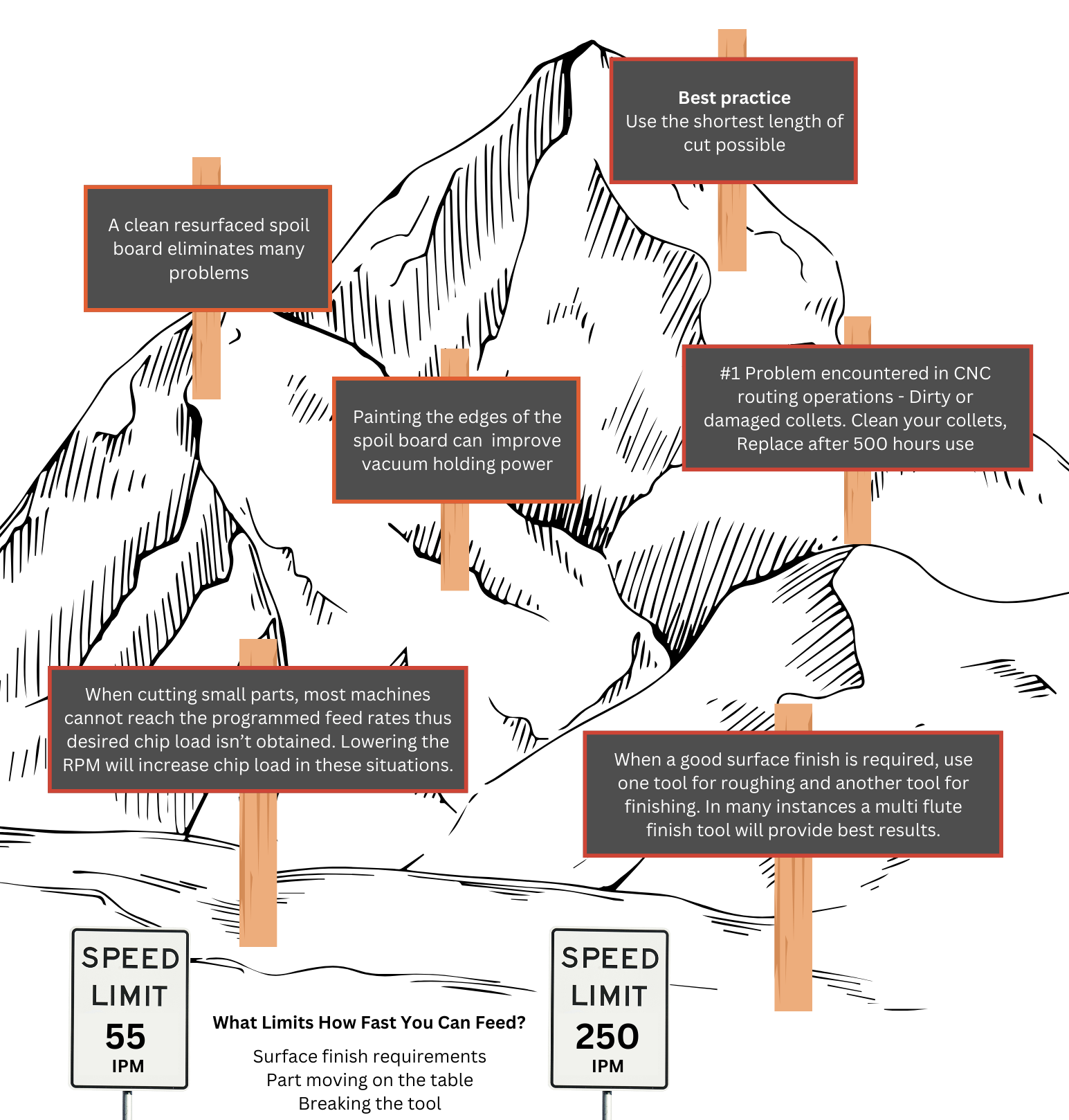

A drawing of a mountain with signs that contain tips for optimizing cnc cutting of plastics and woods
